How To Build a Gable Shed Roof With DIY Trusses

Three years into running my own framing crew, I made the costly mistake of eyeballing top chord angles on an 8:12 pitch gable frame for a local client

Two heavy winter snowstorms later, the ridge had sagged three inches.

That pushed the top wall plates outward and popped the drywall joints inside the attached workshop.

I paid for the repairs myself.

That structural failure taught me that field-built rafters cannot compete with structural trusses when it comes to load distribution and lateral stability.

Key Takeaways

To build a gable shed roof with trusses, calculate the roof span and pitch, then build a jig on the subfloor to match those dimensions. Batch-cut the top and bottom chords, internal braces, and gussets, then assemble every truss on the jig. Hoist and plumb the end-gable trusses first, install the intermediate trusses, secure them with hurricane ties, and finish with staggered roof sheathing, synthetic underlayment, and shingles.

– Building a master framing jig on your plywood subfloor guarantees every truss matches to within a 1/16th inch margin.

– 1/2-inch exterior-grade CDX plywood gussets glued with construction adhesive provide maximum joint shear strength.

– A 4:12 to 6:12 pitch offers the ideal slope for shedding water and handling snow accumulation.

– Temporary lateral bracing along the king posts prevents the domino effect during truss hoist and alignment.

– Structural wall tie-downs and hurricane clips are non-negotiable for securing roof framing directly to top plates in high-wind regions.

Pre-Construction Essentials: Planning A Code-Compliant Gable Truss Roof

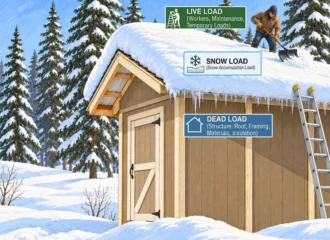

Municipal codes can specify minimum wind uplift resistance, live-load requirements for snow, and maximum building heights for accessory structures.

Ignoring those requirements can mean expensive changes later, a failed inspection, or insurance headaches after a major storm.

Snow loads can vary dramatically by region.

A mild coastal area might require around 20 pounds per square foot, while northern mountain regions can exceed 70 pounds per square foot. Those numbers aren’t interchangeable, and neither are the framing assumptions behind them.

Your roof pitch matters, too. A 4:12 to 6:12 roof slope works well for many shed designs because it gives rain a clean path off the roof, sheds snow reasonably well, and gives you useful overhead clearance without turning the shed into a miniature church.

Determining Roof Pitch and Regional Snow Load Capacity

Roof pitch describes the vertical rise for every 12 inches of horizontal run.

A 5:12 roof, for example, rises 5 inches for every 12 inches of horizontal run.

Steeper roofs such as an 8:12 shed roof can shed rain quickly. The tradeoff is that they expose more roof surface to wind and can demand stronger shear-wall connections and anchors.

Roofs below 3:12 deserve particular attention.

Water moves more slowly, wind-driven rain has more opportunity to work beneath roofing materials, and some low-slope applications require additional waterproofing or ice-and-water protection across the roof deck.

I’ve learned not to make assumptions about this part. Check with your local building authority for the requirements that actually apply to your property, including live load, dead load, snow load, and basic wind speed.

I like to double up the end-gable wall top plates with straight, dry Douglas Fir or Southern Yellow Pine rather than relying on inexpensive Spruce-Pine-Fir studs.

The extra lumber depth gives the truss bottom chords a better bearing surface. It also makes toe-nailing and connector installation easier and reduces the chance of splitting.

Size your top chord spans and roof pitch for the worst historical winter conditions in your area.

Don’t blindly trust a generic online framing chart.

Essential Tools Checklist for Roofing

A framing square and speed square are essential for accurate layout.

For repeatable structural cuts, I prefer a compound miter saw with a 60-tooth fine-finish blade. It produces clean, consistent angle cuts, which matters when you’re making a dozen or more identical trusses.

Layout and Cutting Tools: 10-inch or 12-inch compound miter saw, 7-1/4 inch circular saw with carbide blade, heavy-duty speed square, 100-foot steel tape measure, snap-line chalk box with blue chalk.

Fastening Equipment: Pneumatic framing nailer (21-degree or 30-degree), positive-placement metal connector nailer, heavy-duty cordless impact driver, subfloor construction adhesive cartridges with high-yield caulk gun.

Safety and Staging Setup: OSHA-compliant fall-arrest harness with anchored roof ridge plate, ANSI Z87.1 safety glasses, heavy-duty leather work gloves, non-slip rubber-soled work boots, scaffold staging towers or Type IA fiberglass stepladders.

Working at height creates serious fall hazards.

Those risks increase when you are lifting bulky 2×4 framing components overhead.

Full-length baker scaffolding positioned inside the floor frame provides a stable work platform and reduces the dangerous balancing that often happens on A-frame ladders.

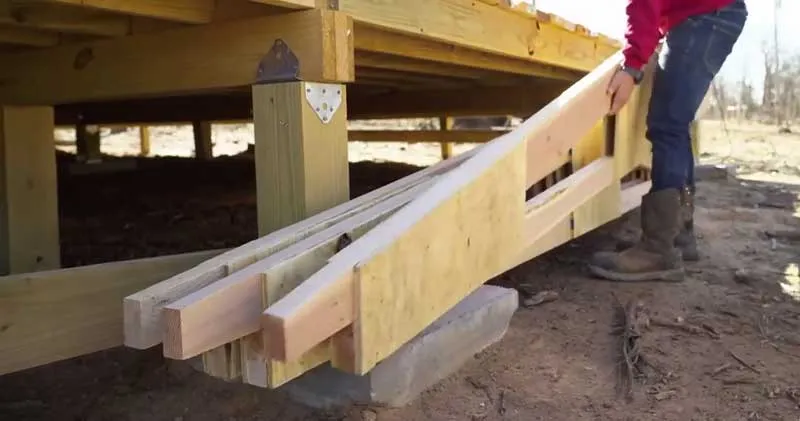

Calculating Truss Quantity Based On Spacing

Truss spacing affects both material cost and structural capacity.

Spacing roof trusses at 24 inches on-center (O.C.) reduces material use and dead load.

However, it generally requires thicker roof sheathing, such as 5/8-inch panels, to reduce visible sag between supports.

Using 16-inch on-center spacing increases framing density.

It can allow 1/2-inch sheathing and provides more frequent support for roof loads.

Order your framing lumber 5 to 7 days before building the jig. Keep it off the ground using wooden spacers, called stickers, between each layer.

Strap the stack flat and protect it with a tarp while allowing reasonable airflow.

Giving dimensioned 2x4s time to acclimate to local humidity can reduce warping and twisting after the trusses are installed.

To calculate the number of trusses, divide the building length in inches by your chosen center-to-center spacing.

Round up to the nearest whole number and add one final unit for the end wall.

For example:

16-foot shed = 192 inches

192 ÷ 24 = 8

8 + 1 = 9 trusses

So a 16-foot shed with trusses spaced 24 inches O.C. requires 9 complete truss assemblies.

If your gable roof includes overhangs beyond the end walls, remember to account for additional barge rafters or fly rafters.

Measuring Top Chord and Ridge Plumb Deductions

You can calculate top chord length using the Pythagorean theorem:

A² + B² = C²

You can also multiply the horizontal run by the appropriate roof-pitch diagonal multiplier.

For a 12-foot-wide shed, the total span is 144 inches.

Half of that gives you a horizontal run of 72 inches, or 6 feet.

With a 5:12 roof pitch, the roof rises 5 inches for every 12 inches of horizontal run.

That gives you a total vertical rise of 30 inches from the top of the bottom chord to the apex.

Pitch Multipliers for Finding Top Chord Length

Pitch Ratio	Multiplier	Calculation E.g., 6-ft Run
3:12	1.0308	6' × 1.0308 = 6.18 ft, 74-3/16"
4:12	1.0541	6' × 1.0541 = 6.32 ft, 75-7/8"
5:12	1.0833	6' × 1.0833 = 6.50 ft, 78"
6:12	1.1180	6' × 1.1180 = 6.70 ft, 80-7/16"
8:12	1.2019	6' × 1.2019 = 7.21 ft, 86-1/2"
10:12	1.3017	6' × 1.3017 = 7.81 ft, 93-11/16"
12:12	1.4142	6' × 1.4142 = 8.48 ft, 101-3/4"

Top chords meet along a central plumb line at the peak.

Because standard 2×4 framing is 1.5 inches thick, each chord typically needs to account for half that thickness, or 3/4 inch, measured perpendicular to the plumb line.

Ignoring this deduction can throw the entire truss out of square.

The result can be an uneven ridge line that makes roof sheathing extremely difficult to install.

Choose Dry, Straight Lumber

Fresh, high-moisture lumber can create problems after the roof is finished.

As wet wood dries beneath asphalt shingles, it shrinks across its width. That movement can loosen plywood gussets, pop roof sheathing nails, and distort an otherwise straight roofline.

And don’t assume the lumberyard’s stack contains nothing but perfectly straight boards.

Sight down the edge of every 2×4 and identify its natural crown.

The crown is the slight upward curve along the narrow edge of the board.

Orient the crown upward toward the sky when cutting your top chords.

As the roof carries load, gravity works against the crown.

Installing crowned boards upside down can contribute to an unwanted sag in the roofline.

Measuring and Marking Wall Plates for Accurate Spacing

Accurate truss layout starts on the wall plates.

Snap clear layout lines while standing safely on the subfloor.

This helps keep the roof framing plumb and aligns roof sheathing with the wall studs below.

Before erecting the walls, clamp the front and back top plates together on the subfloor.

Mark the truss locations across both plates at the same time using a wide framing square.

This creates identical layouts on both sides of the building and helps keep the roof structure square.

Pull your tape continuously along the plate. Mark the first interior truss at 15-1/4 inches, then mark every 16 inches after that: 31-1/4″, 47-1/4″, 63-1/4″, and so on.

Use a speed square to extend the layout lines across both top plates.

Place an X on the side of each line where the truss timber will sit.

Long wall plates can bow inward or outward under load.

Before setting the trusses, stretch a tight mason line along the outside edge of the wall plate.

The string will reveal those bows.

Use internal diagonal braces to push or pull the wall plates into alignment before locking down the first roof truss.

End-Gable and Interior Truss Assembly on a Precision Jig

The shed’s flat subfloor is one of the best places to build a DIY truss jig.

It is already large, flat, and close to the final installation location.

Lay out the top chords and bottom chord directly on the subfloor using your calculated dimensions.

Snap high-visibility chalk lines around the outside edges of the roof frame. Include the planned overhang tails.

Then screw 2×4 scrap blocks into the subfloor along those chalk lines.

These blocks create a rigid perimeter cradle for the truss.

Pressing each piece of lumber tightly against the guide blocks keeps every assembly consistent.

The goal is simple:

Build one perfect truss, then use the jig to repeat it.

I once rushed a 14-foot shed job and cut the parts on sawhorses instead of building a fixed floor jig. The differences were only about an eighth of an inch. But across twelve trusses, those small errors added up. The ridge line became wavy. It took two days of shimming and trimming before the roof sheathing would sit flat.

Batch Cutting Top & Bottom Chords With Web Braces

Cut your first top chord carefully. Check every miter angle and plumb cut against the chalk outline.

Once it is correct, use it as your master template.

You can also install a wooden stop block on the miter saw stand to make repeated cuts faster.

Dedicated flip-stop blocks on a long miter saw station make dozens of identical cuts much easier.

Pay close attention to the upper peak, lower seat cuts, and internal web brace ends.

These joints should fit tightly without large gaps.

Good wood-to-wood contact allows loads to transfer through structural compression instead of forcing fasteners to carry everything.

Label every pre-cut part so assembly moves smoothly once framing begins.

Pre-cut every top chord, horizontal bottom chord, vertical support, and plywood gusset plate before starting the main assembly. This eliminates constant tool changes.

Stack the finished components beside your subfloor jig so every part stays within easy reach.

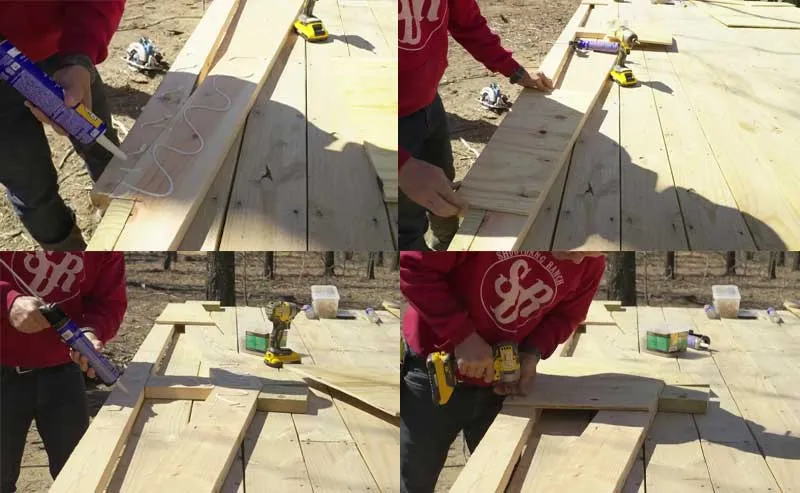

Fabricating Structural Gusset Plates Using Plywood

Structural gussets connect the truss components and distribute forces across the joints.

Cut custom gussets from 1/2-inch exterior-grade CDX plywood or 7/16-inch OSB.

Apply a thick, continuous zigzag bead of heavy-duty polyurethane construction adhesive between the gusset backer and framing lumber. This creates a strong permanent bond between the materials.

Then drive ring-shank framing nails or structural wood screws through the gusset in a tight, staggered pattern.

The staggered pattern helps distribute the fasteners and reduces the chance of splitting the wood.

Final Assembly

Build each truss inside the wooden floor jig.

Install the structural gusset plates.

Once one side is secured, flip the frame and attach the gussets to the opposite face.

This keeps the assembly process moving quickly.

Stack completed trusses flat on dry, supported blocks until you are ready to install them.

Build the two heavy end-gable units first.

For the gable ends, install vertical framing studs at 16 inches on-center.Then build the standard interior trusses.

Using the completed gable assemblies as references helps ensure every intermediate truss matches the outer wall frames.

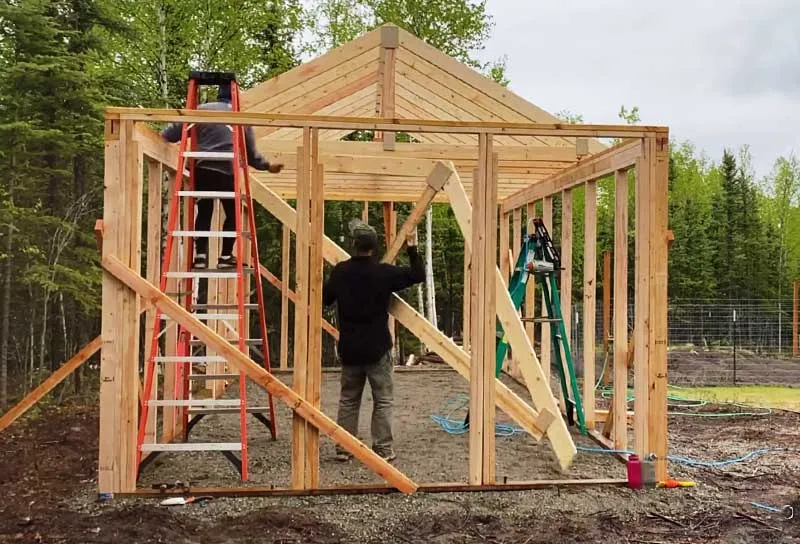

Raising and Bracing Gable End Trusses for Solo Builders

The first gable assembly is the most difficult because it has no neighboring trusses to support it.

For solo work, one approach is to lift the gable frame onto the wall plates while it is upside down. Then rotate the peak upward using a long 2×4 push pole.

Temporary guide blocks screwed to the top plates help keep the lower seat cuts from sliding off the wall.

Once upright, check the gable with a 4-foot spirit level or weighted plumb bob.Then install long diagonal 2×4 braces from the peak to secure ground stakes or interior floor joists.

Those braces hold the gable frame plumb while you install the remaining roof trusses.

Never stand directly on open, unbraced double top plates while lifting heavy roof framing overhead. Use solid interior scaffolding planks spanning the lower wall top plates to create a wide, stable walking platform.

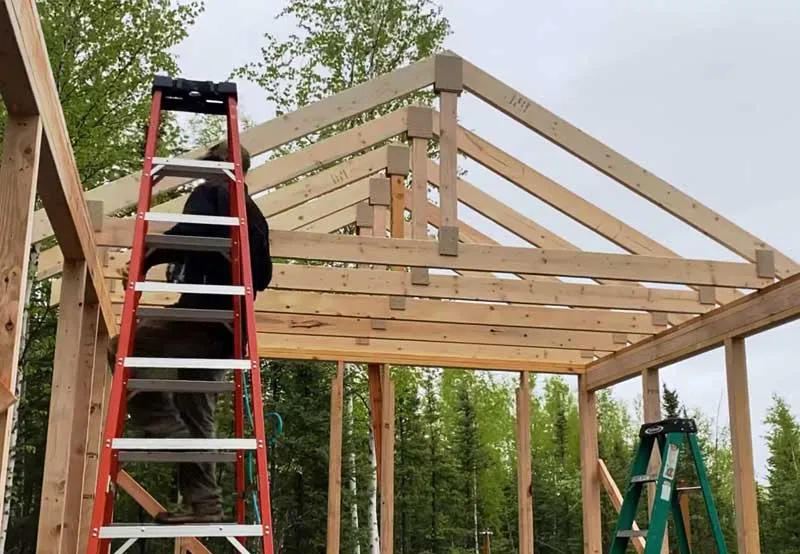

Installing And Aligning the Ridge

Cut temporary spacing blocks to match your exact truss spacing.

For a 16-inch O.C. layout, the space between adjacent trusses is typically 14-1/2 inches.

Stretch a highly visible mason string between the peak points of the two outer gable trusses.

As you raise each interior truss:

Align its peak with the string. Drop the spacing block between the top chords.

Check the truss for plumb. Tack a continuous 1×4 runner across the top chords near the peak.

The runner temporarily locks the truss array together.

Do not remove temporary top-chord diagonal braces until the roof sheathing is fully nailed down. Removing temporary bracing too early can allow the trusses to lean like dominoes. That can rack the entire roof structure out of alignment.

Plumb Alignment and Installing Interior Lateral Bracing

Walk the interior deck and sight along the bottom chords and ridge line.

Look for curves, bows, or tilted trusses.

Correct those problems with the temporary diagonal braces before driving the final roof-deck fasteners.

A tight mason line across the outer peaks can reveal subtle differences in ridge height and horizontal drift.

Inside the attic space, install secondary diagonal 2×4 braces across the underside of the top chords.

These braces help resist lateral movement while construction is still underway, especially during strong wind gusts.

Mechanical Anchoring: Hurricane Ties, Toe-Nailing, and Shear Walls

Simple toe-nailing through a bottom chord into a wall plate is not enough for serious wind uplift.

In coastal and high-wind regions, building codes may require a continuous structural load path.

Engineered hurricane ties, such as Simpson Strong-Tie H2.5A connectors, mechanically connect the truss to the wall plate.

The goal is to transfer roof forces through the walls and down toward the foundation.

Use the fasteners specified for the connector. Do not substitute standard drywall screws or thin yellow-zinc cabinet screws. Drywall screws are brittle and are not designed for structural connector applications. They can snap under structural movement or wind vibration.

If an electrician or HVAC contractor will work inside the shed later, tell them not to cut, notch, or drill through truss bottom chords or web braces.

Altering even one web component can compromise the structural integrity of the entire clear-span roof assembly.

End-Gable Wall Studs and Shear Sheathing

Install vertical 2×4 studs inside the outer gable triangle at 16 inches on-center. These studs provide solid backing for exterior siding.

Install them with their broad face parallel to the wall line to increase resistance to wind pressure.

Then sheath the gable assembly continuously with OSB or plywood.

The continuous sheathing ties the roof line into the lower wall sheathing.It also helps turn the end walls into strong shear panels that resist building movement.

Framing Gable Overhangs Including Fly Rafters

Ladder-style overhangs, also called barge rafters or fly rafters, protect gable end walls from vertical rain runoff.

They also give the shed a more finished architectural appearance.Build the ladder-style overhang assembly on the ground using 2×4 lumber.

The outer stringer becomes the exposed fly rafter. The internal horizontal members become the lookouts.

These lookouts extend from the first interior truss to support the fly rafter.

Notch the top edge of the end-gable truss chords by 1-1/2 inches so the 2×4 lookout members can pass flush across the gable wall.

Clean, accurate notches make the overhang easier to assemble. They also create a straighter trim line.

Taking the extra time to tie the lookouts into the gable trusses and connect the barge rafters to the rafter tails can make a basic utility shed look professionally built.

Trimming Rafter Tails and Installing the Sub-Fascia Board

Run a tight mason line along the rafter tails before installing the sub-fascia.

This reveals small differences in rafter length.

Trim uneven rafter tails using a vertical plumb cut so the sub-fascia sits square with the building walls.

Then fasten 2×4 or 2×6 rot-resistant sub-fascia across the rafter tails.

The sub-fascia locks the lower roof edge into alignment.

Install finished composite or clear-grain wood fascia over the sub-fascia for a clean exterior ready for paint and gutters.

If your storage shed is in an HOA-controlled neighborhood, match the fascia depth, eave overhang, and shingle color to your primary home.

Spending a little more on matching overhang details can prevent complaints and make the shed look like it belongs on the property.

Sheathing and Weatherproofing the Roof System

Structural roof panels need proper expansion gaps to prevent buckling during periods of high summer humidity.

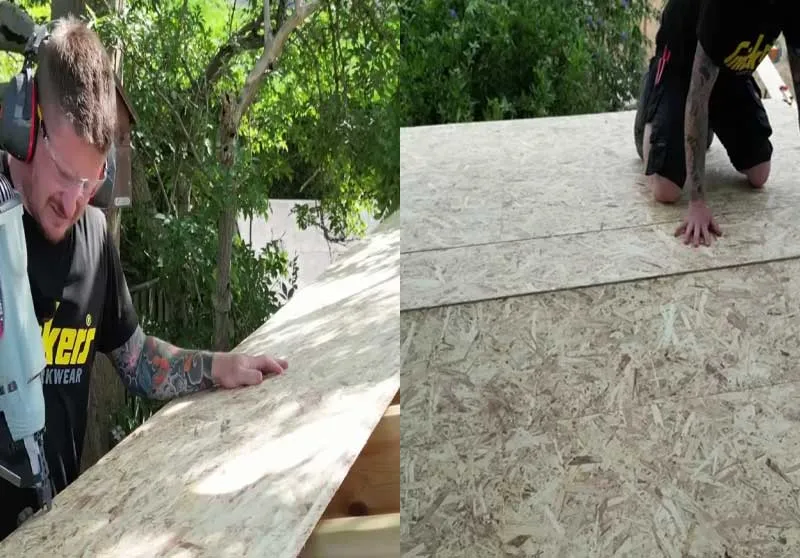

Install 7/16-inch or 1/2-inch OSB structural panels with the strong axis running perpendicular to the roof framing.

This orientation provides better support for foot traffic and snow loads.

Leave a 1/8-inch expansion gap between panel edges. The gap gives the panels room to expand without buckling against each other.

Install metal H-clips between unsupported frame spans to prevent panels from flexing under heavy foot pressure

Stagger end joints between adjoining panel runs in a brick-bond pattern to distribute structural seams across the roof framing.

Do not leave unpackaged OSB sheathing panels sitting directly on humid ground. They can absorb moisture quickly and expand before installation. Butt damp panels tightly together without the required 1/8-inch spacing and they can buckle, creating visible ridges beneath your finished roof shingles

Deck Fastener Schedules: Nailing Patterns for Panels

Space 8d ring-shank framing nails every 6 inches along panel perimeter edges and every 12 inches along interior field supports. The small mechanical ridges along ring-shank nail shafts increase pull-out resistance compared with smooth framing nails.

Drive the fasteners flush with the OSB surface without crushing the top wood fibers. This preserves the panel’s shear strength. Secure the panel corners firmly to prevent lifting and eliminate squeaks when walking across the roof deck.

A pneumatic coil roofing nailer or framing nailer with a flush-drive nose attachment can dramatically speed up sheathing installation. Set the air pressure so the ring-shank nail heads sit flush without breaking through the top veneer. This preserves the structural shear strength of the panel.

Installing Drip Edge Flashing With Underlayment and Ice Barriers

Install corrosion-resistant aluminum or steel drip edge flashing along the lower eaves first.

This directs water away from the roof edge and into the gutters.

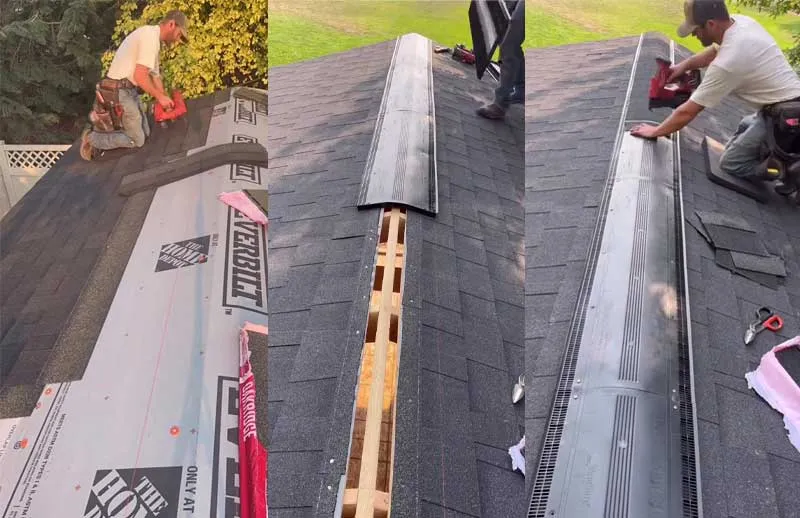

Roll synthetic roof underlayment horizontally across the roof deck. Work from the eaves toward the ridge.

Synthetic underlayment generally provides better tear resistance than standard felt paper.

Overlap lower courses by at least 4 inches and end seams by 6 inches, or follow the product manufacturer’s requirements.

Secure the underlayment with plastic-cap roofing nails designed for the product.Then install the second drip-edge flashing pass along the sloping gable rake edges.

This helps seal the roof against side-driven rain.

In cold regions, install a self-adhered ice-and-water membrane along the eaves where required. This helps protect against leaks caused by ice dams.

Shingle or Metal Roof Application

For asphalt shingles, start with a starter strip along the eaves. The starter course seals the first row and helps protect against wind lift.

Use dedicated 1-1/4-inch galvanized roofing nails driven through the manufacturer’s designated nail line.

Offset standard shingle seams by 6 inches between courses. This keeps vertical joints from lining up and reduces the chance of water finding a path into the building.

If you are installing exposed-fastener ribbed metal roofing panels, drive neoprene-washer screws through the flat panel pans and into the underlying truss chords. Apply even pressure so the washers compress properly and create a watertight seal.
