10x10 Clerestory Storage Shed Plans

10x10 Clerestory Shed Plans Blueprints

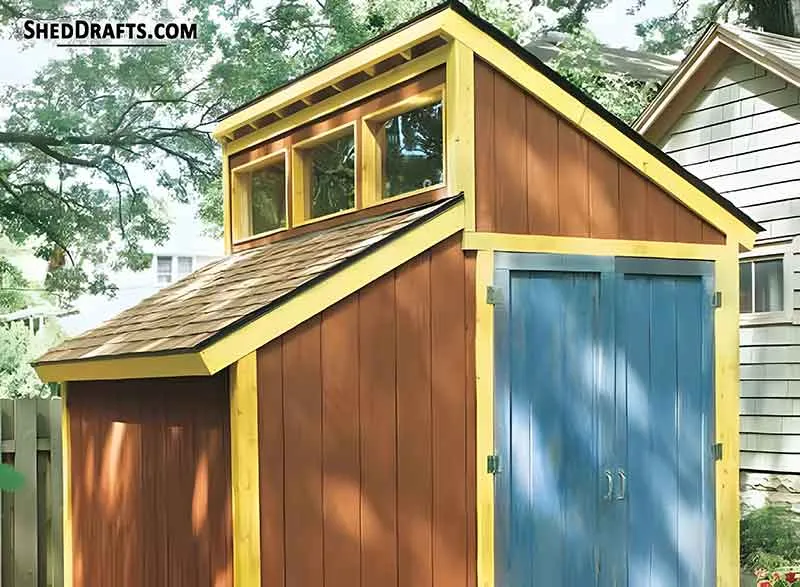

Here are a few 10×10 clerestory shed blueprints for setting up a beautiful yard shed on your property.

That clerestory roof contains a high, narrow band of windows that lets a person flood the workspace with natural light without sacrificing an ounce of wall space for storage or gallery hanging.

Most sheds feel like a tomb because they rely on standard eye-level windows that take up prime real estate where shelving or an easel would otherwise be placed.

This design solves that by lifting the roofline, creating a vertical transition that mimics high-end residential architecture.

10×10 Clerestory Shed Blueprints Showing 3D Layout

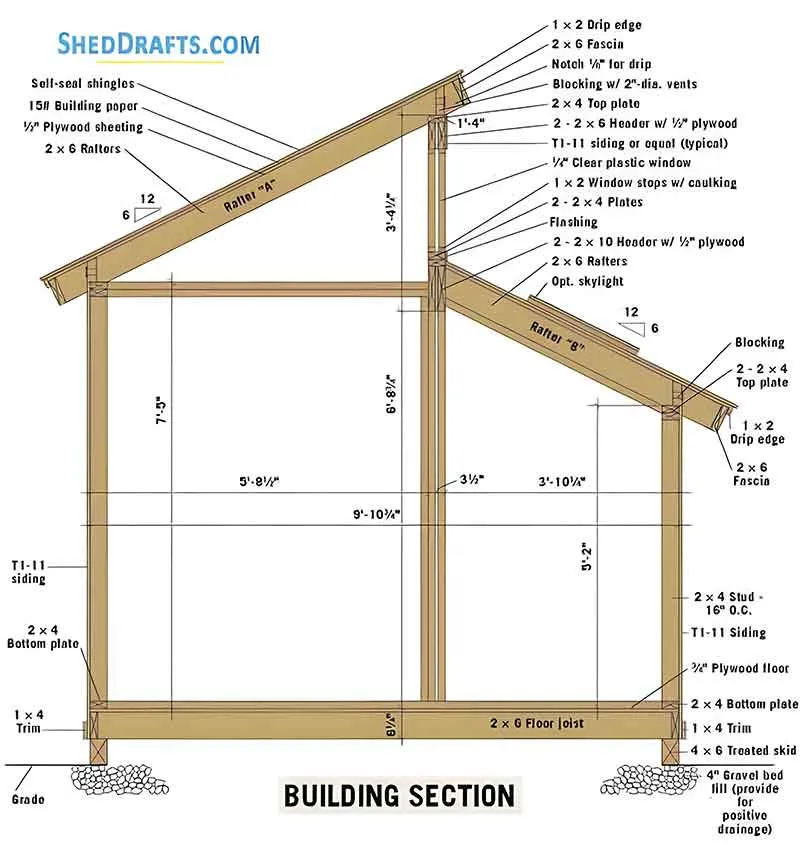

10x10 Clerestory Shed Plans Blueprints 01 Building Section

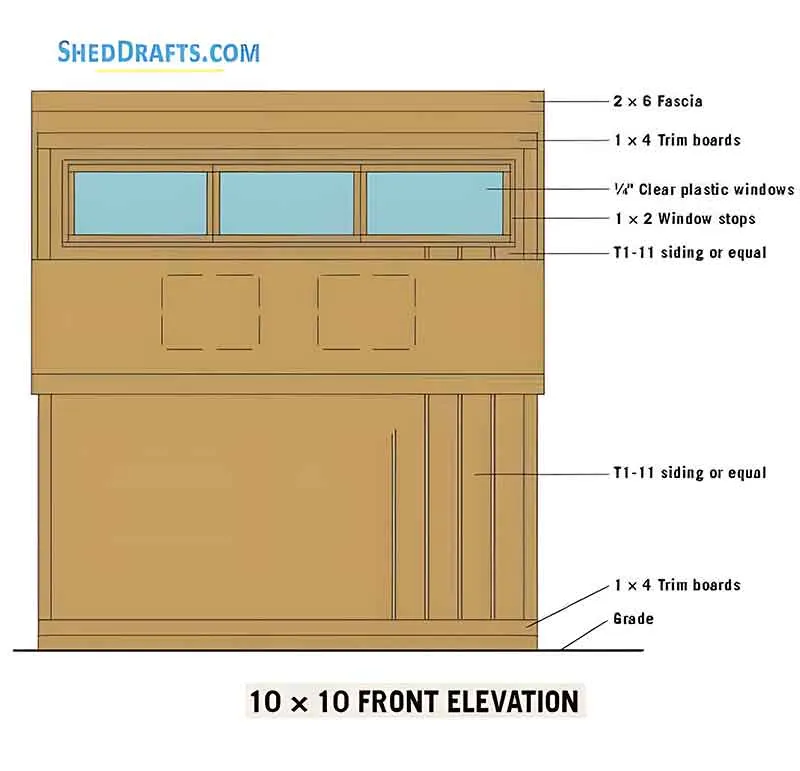

10x10 Clerestory Shed Plans Blueprints 02 Front Elevations

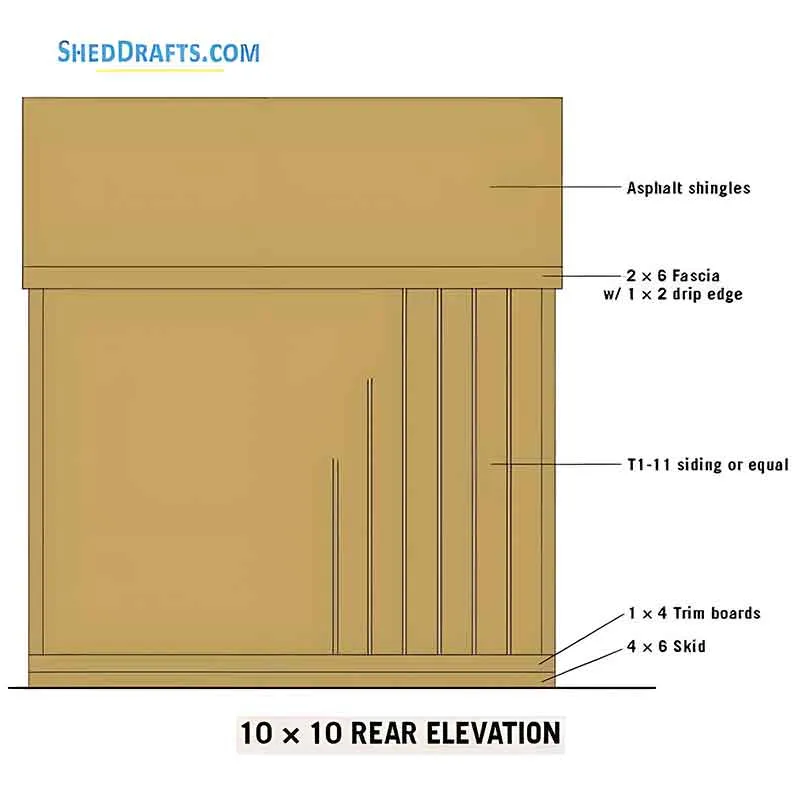

10x10 Clerestory Shed Plans Blueprints 03 Rear Elevations

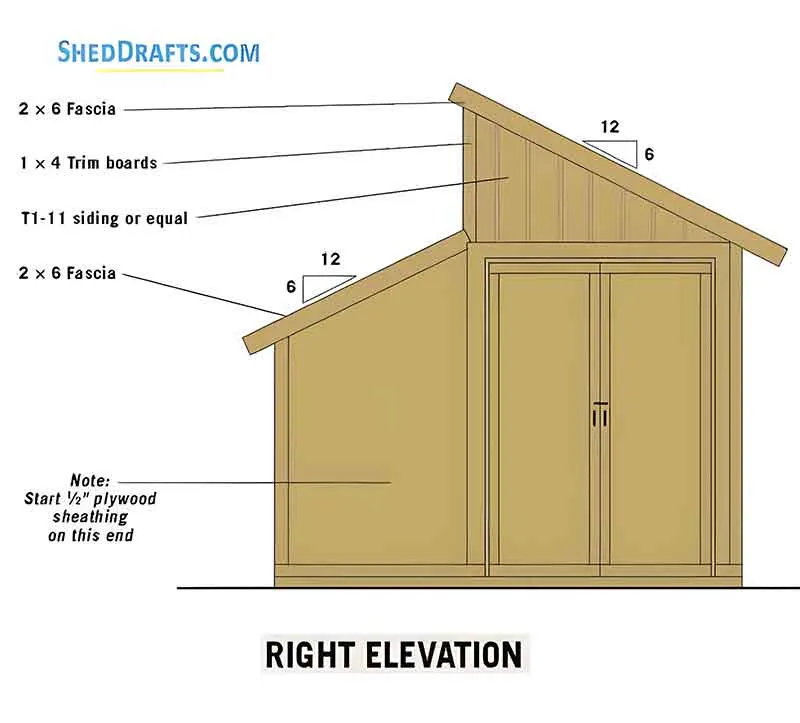

10x10 Clerestory Shed Plans Blueprints 04 Right Elevations

Plans Showing Foundation Details And Floor Framing

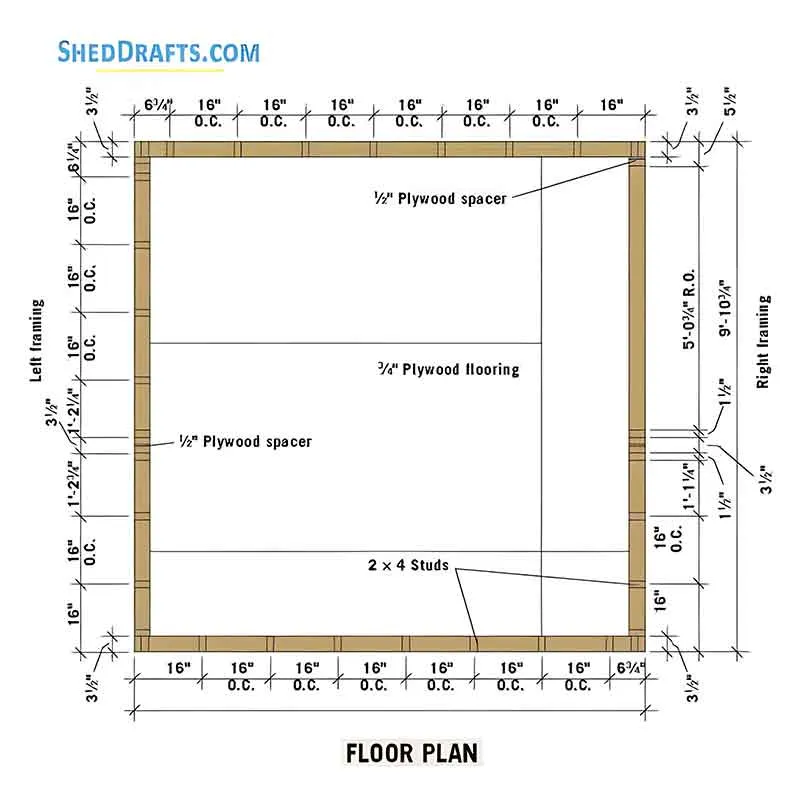

10x10 Clerestory Shed Plans Blueprints 05 Floor Framing Plan

Assembly Schematics Showing Rafter Design And Roof Framework

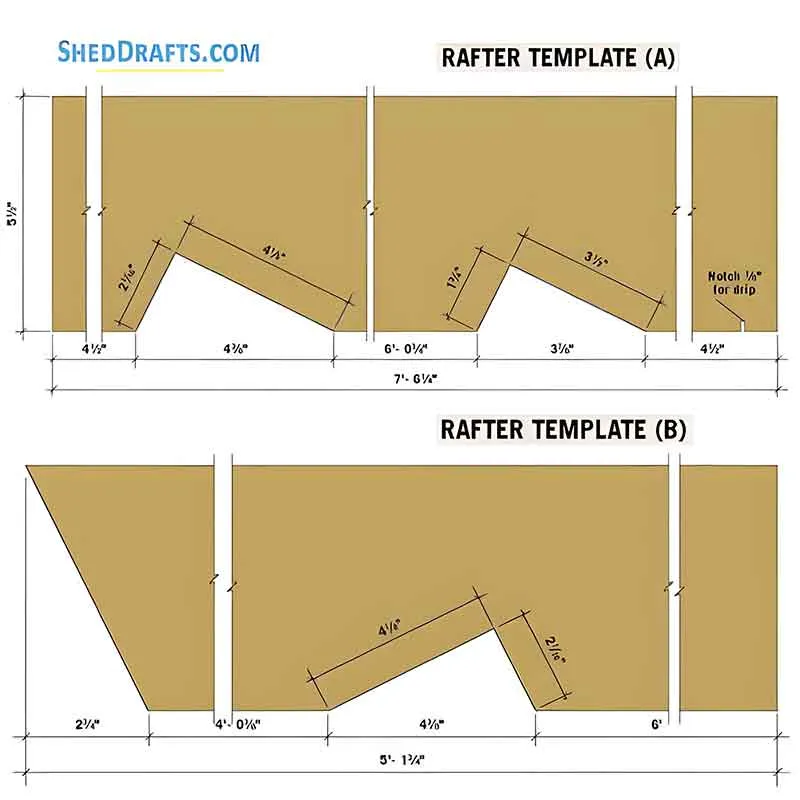

10x10 Clerestory Shed Plans Blueprints 09 Rafter Template

Drafts To Create Doors & Windows

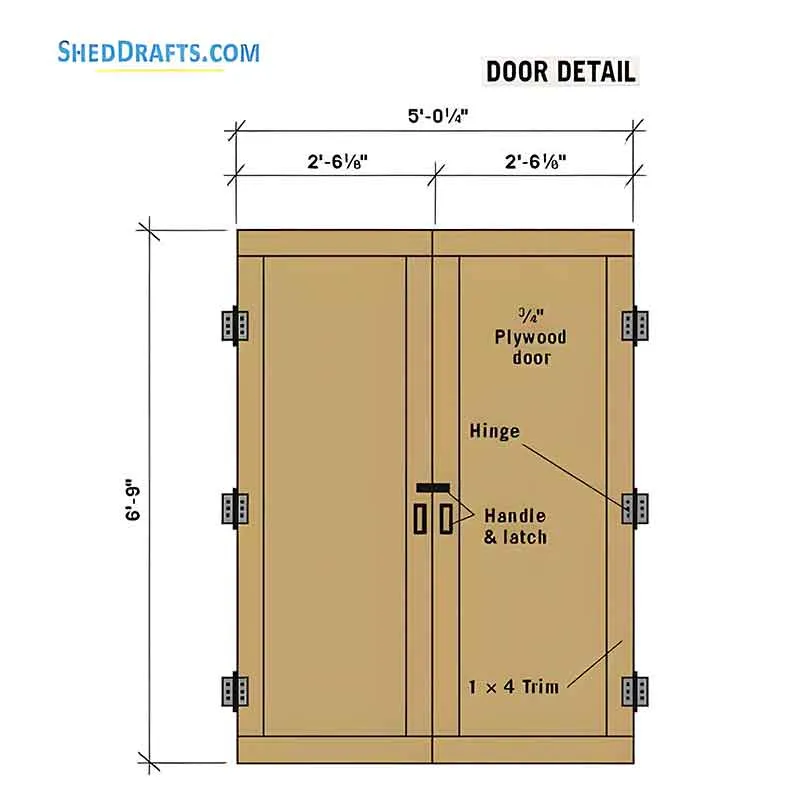

10x10 Clerestory Shed Plans Blueprints 11 Door Detail

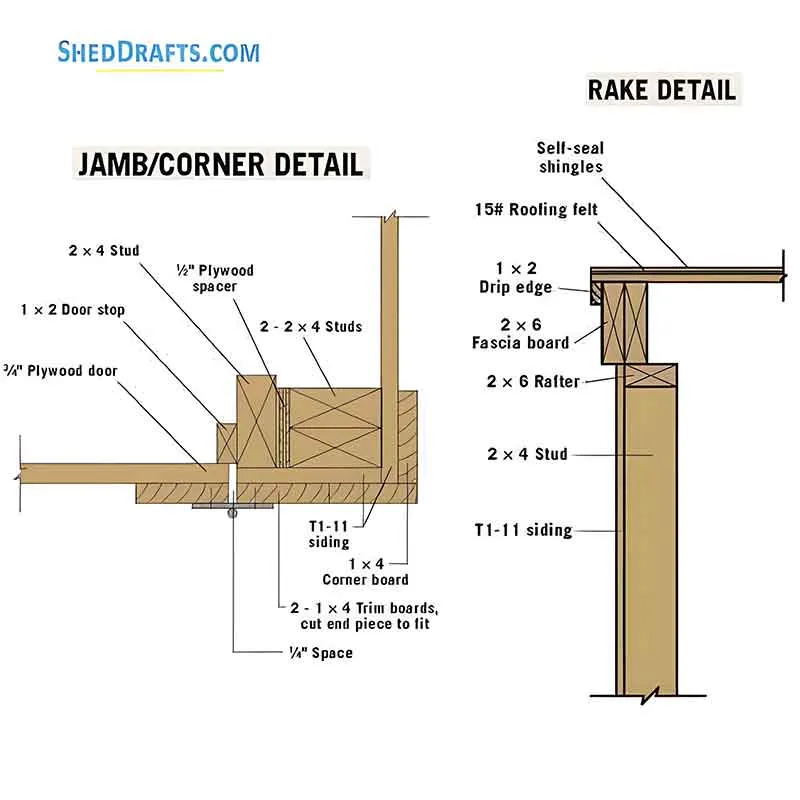

10x10 Clerestory Shed Plans Blueprints 10 Jamb Rake Corner Details

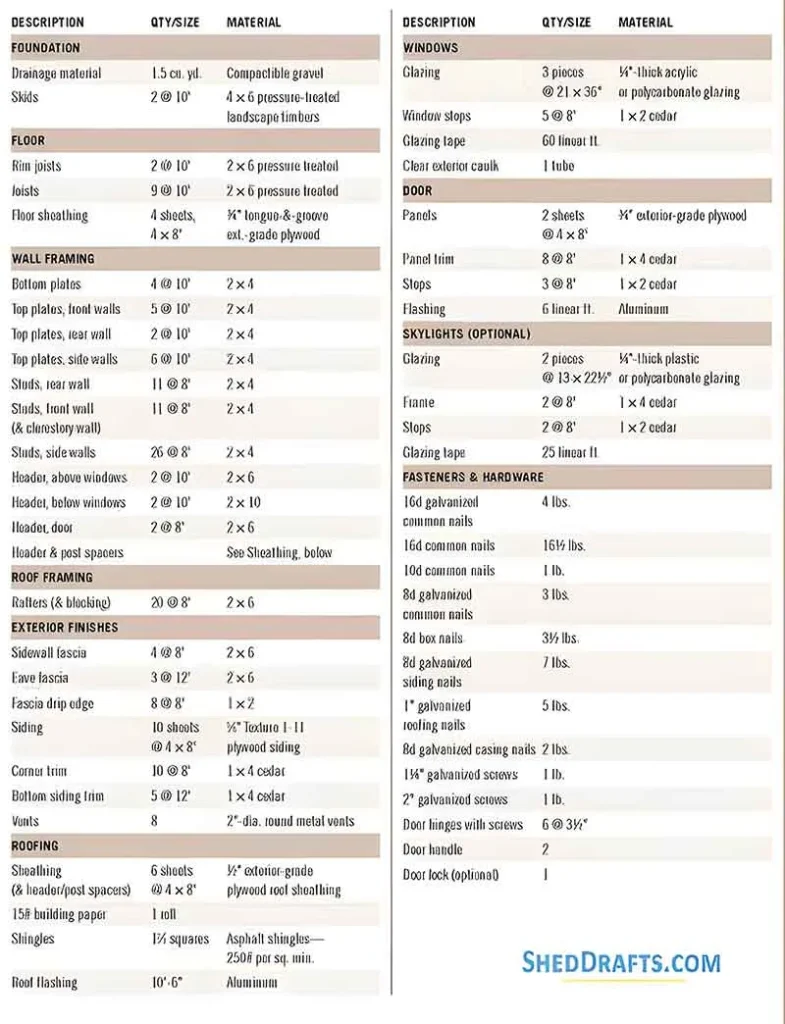

10x10 Clerestory Shed Plans Blueprints 12 Material List
