8×12 Saltbox Storage Shed Plans

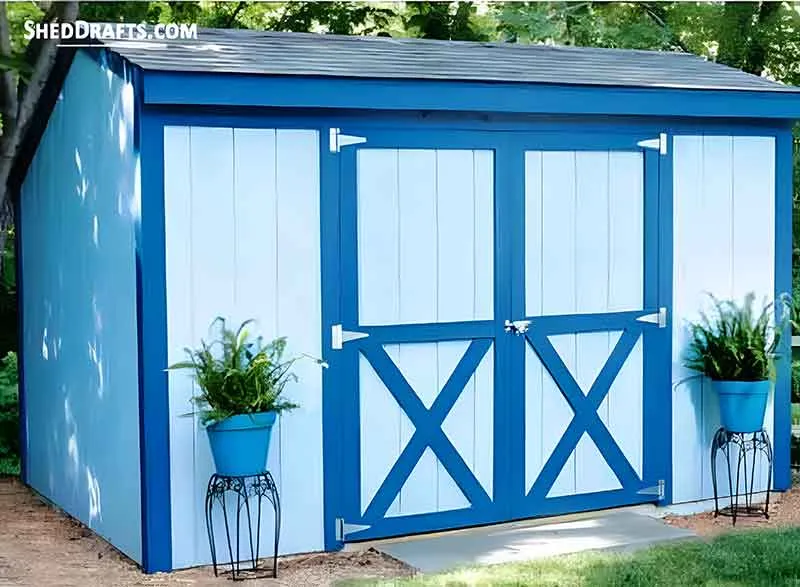

8x12 Saltbox Storage Shed Plans Blueprints 00 Draft Design

Here are some 8×12 saltbox storage shed blueprints for putting together a long-lasting lumber shed in your yard.

You may include add-ons like hangers, lighting and perhaps a workbench in your outbuilding depending on your unique preferences.

Check that the building will fit within the construction area you have selected including a 12 inch space around the shed.

Studs and beams have to be fastened using hot-dipped screws.

Shed crafting schematics are very beneficial if you are a craftsman who prefers to make structures with their own hands.

8×12 Saltbox Storage Shed Assembly Plans With Building Section And Elevations

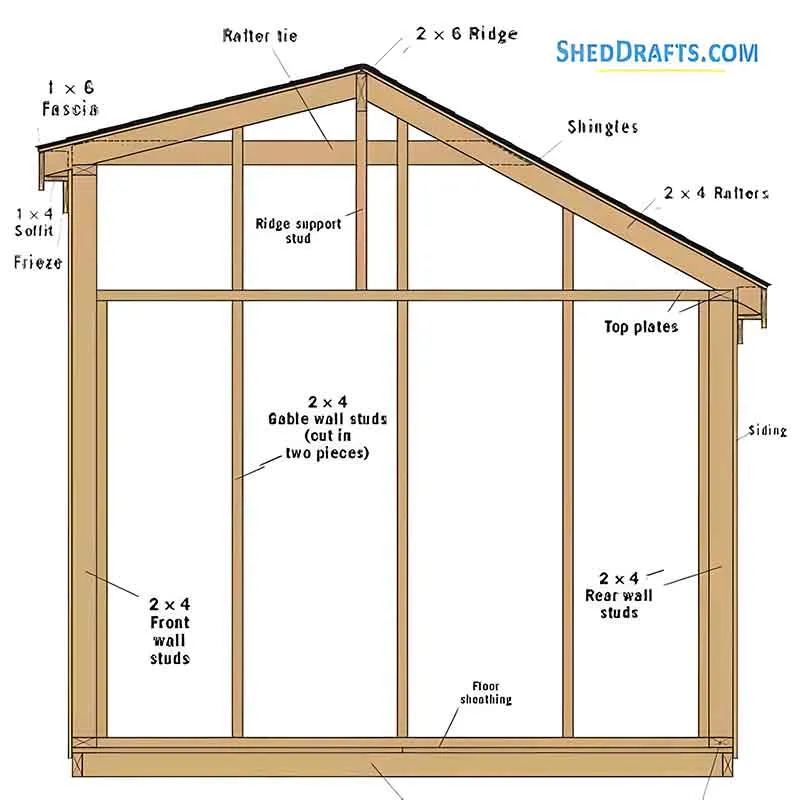

8x12 Saltbox Storage Shed Plans Blueprints 01 Building Section

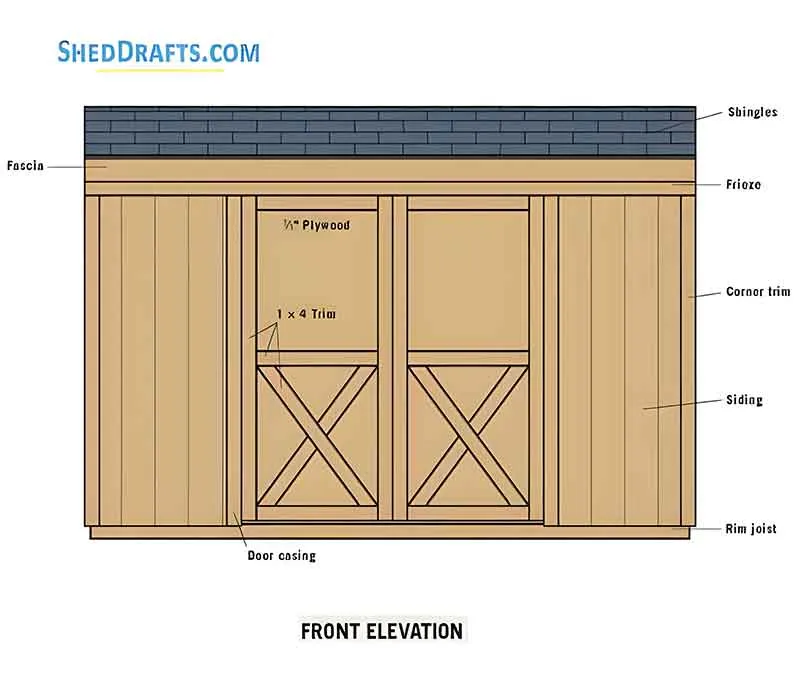

8x12 Saltbox Storage Shed Plans Blueprints 02 Front Elevations

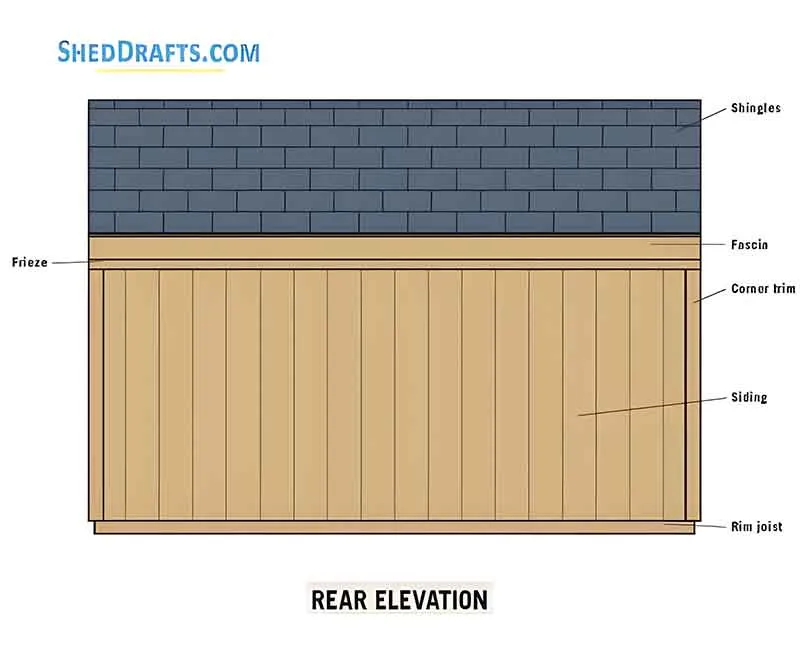

8x12 Saltbox Storage Shed Plans Blueprints 03 Rear Elevations

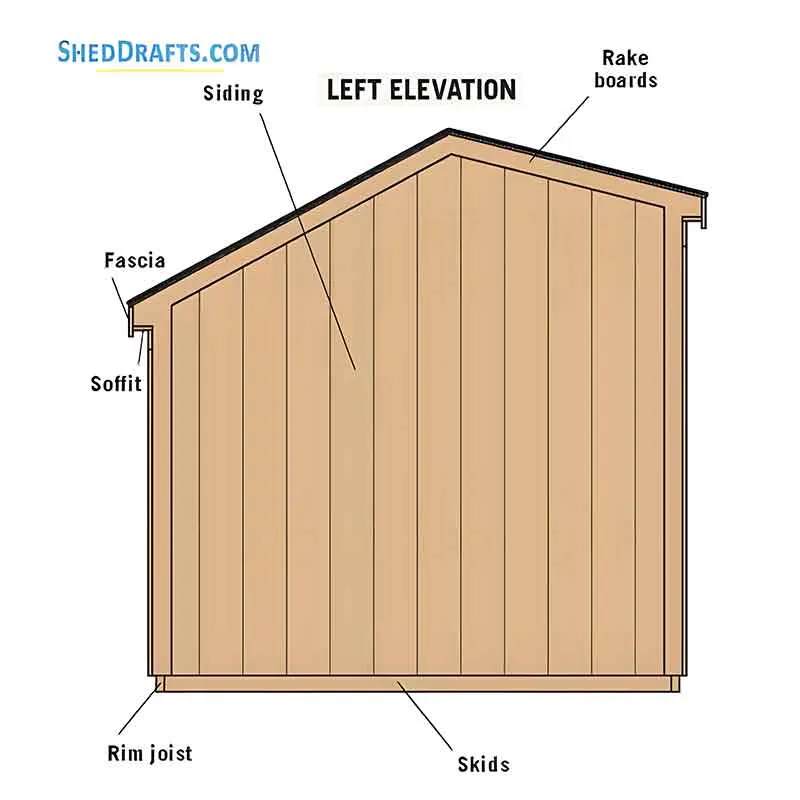

8x12 Saltbox Storage Shed Plans Blueprints 04 Left Elevations

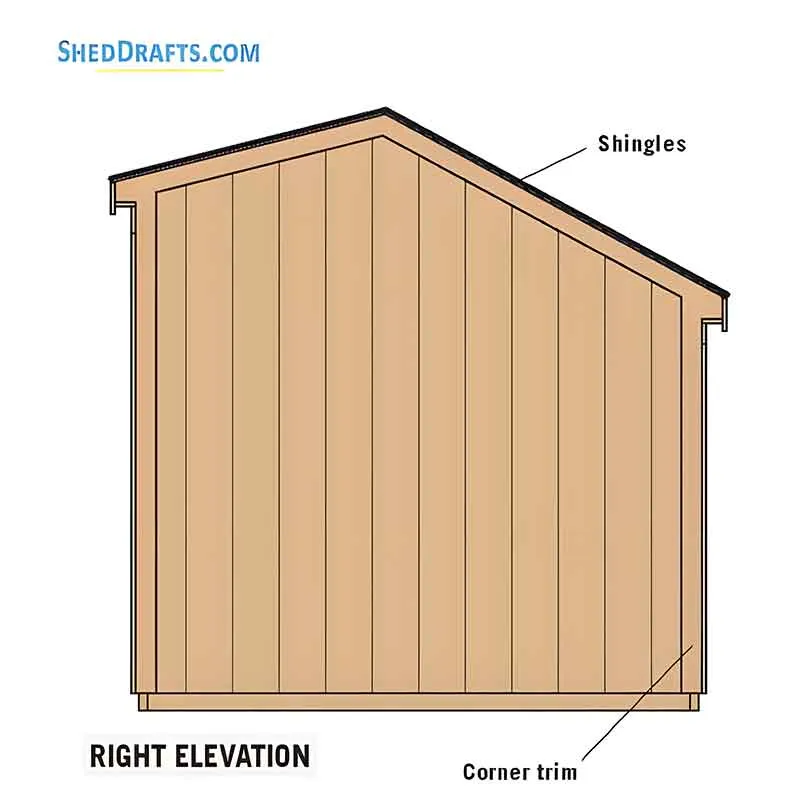

8x12 Saltbox Storage Shed Plans Blueprints 05 Right Elevations

Saltbox Shed Building Blueprints For Foundation Layout And Floor Framework

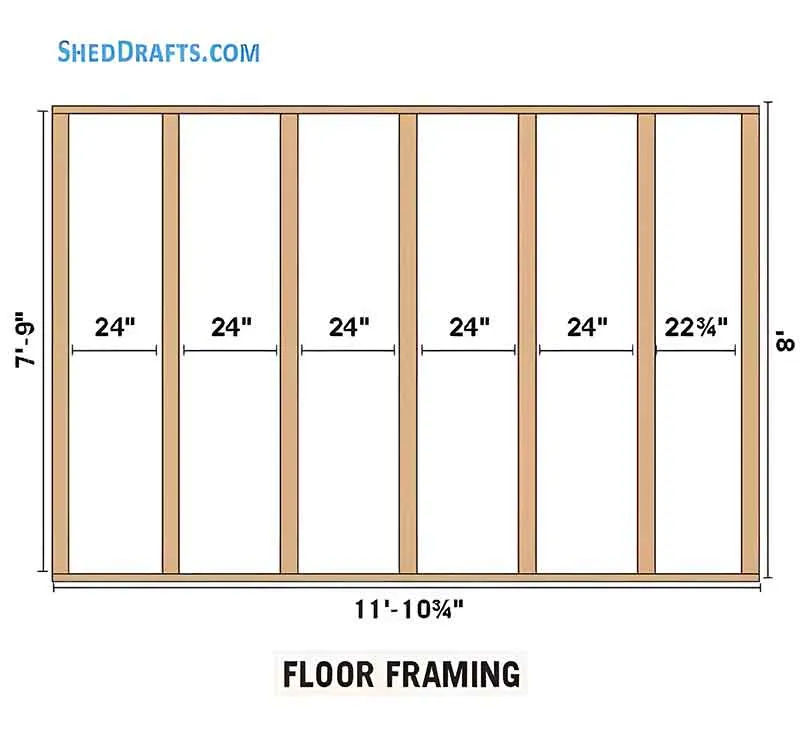

8x12 Saltbox Storage Shed Plans Blueprints 10 Floor Framing Plan

8×12 Storage Shed Making Diagrams To Craft Wall Framework

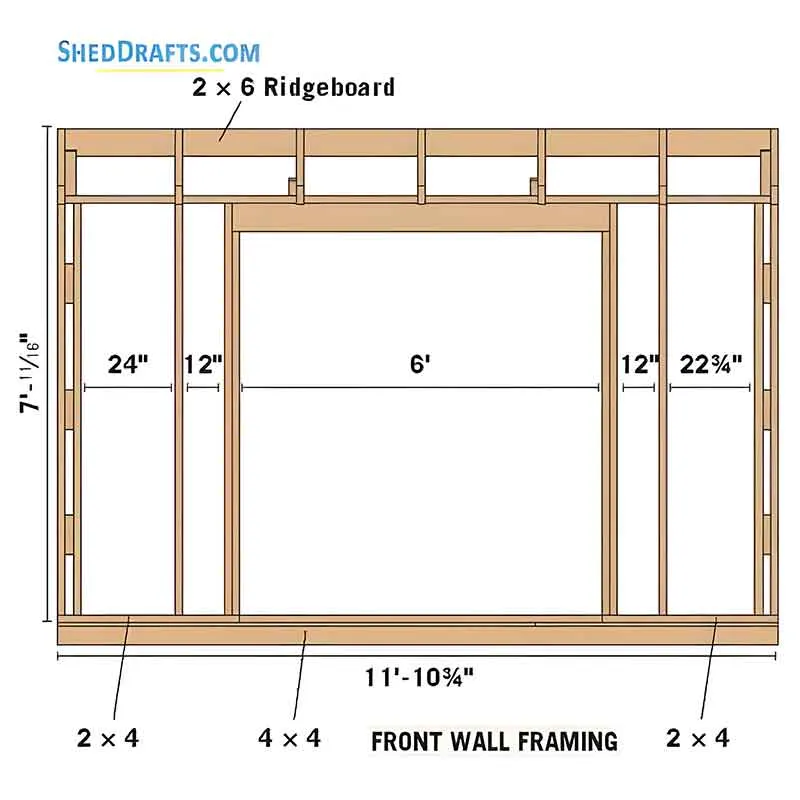

8x12 Saltbox Storage Shed Plans Blueprints 06 Front Wall Framing

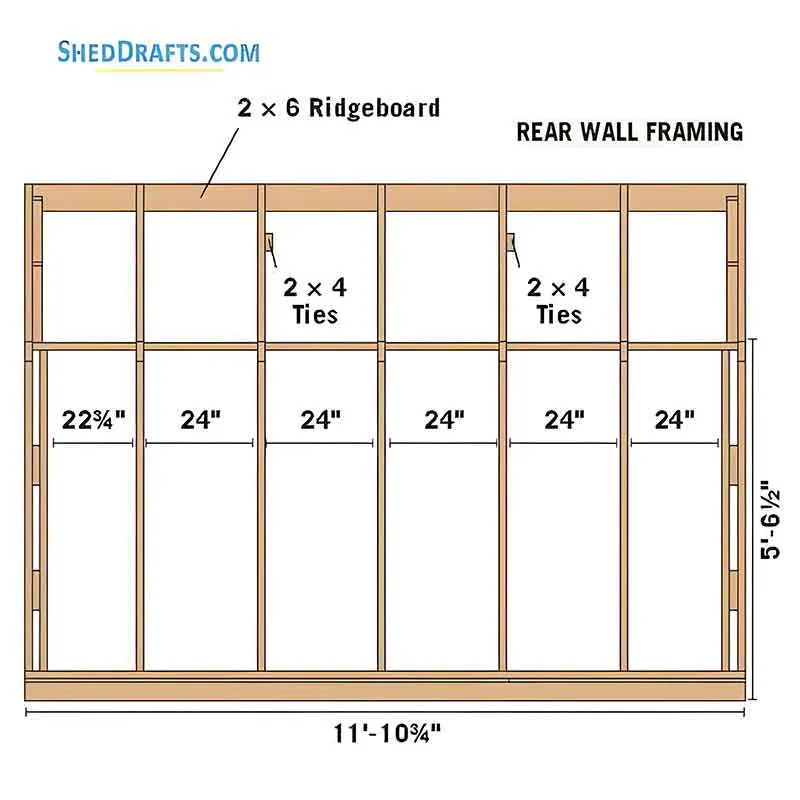

8x12 Saltbox Storage Shed Plans Blueprints 07 Back Wall Framing

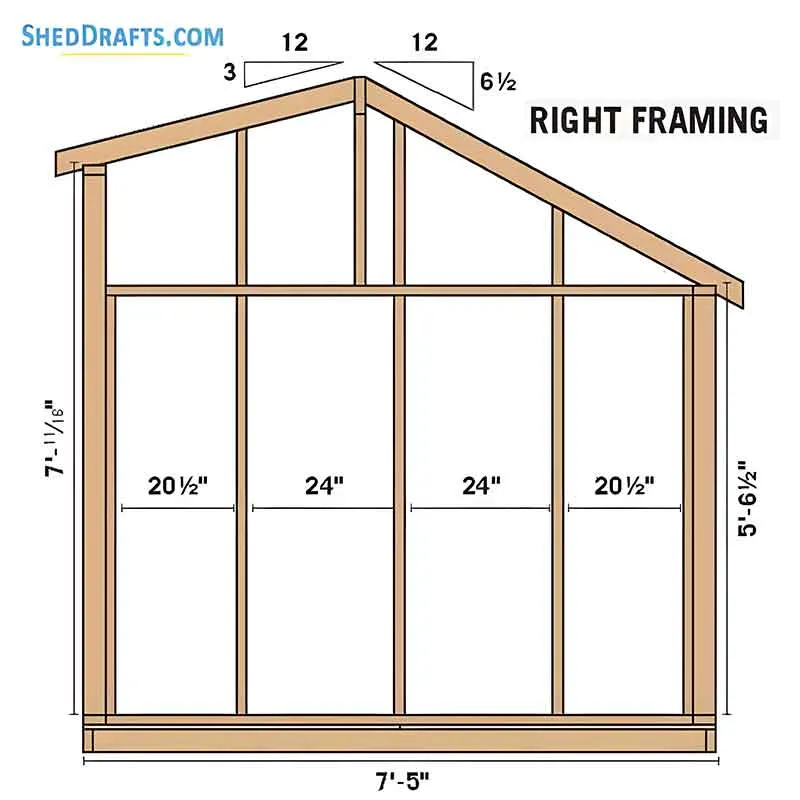

8x12 Saltbox Storage Shed Plans Blueprints 08 Right Wall Framing

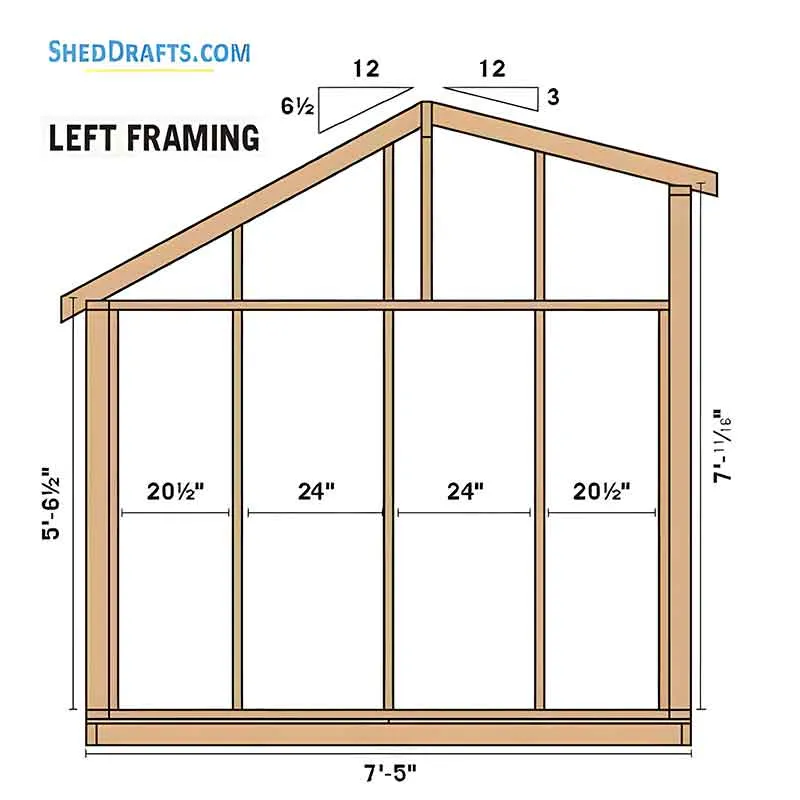

8x12 Saltbox Storage Shed Plans Blueprints 09 Left Wall Framing

    8×12 DIY Shed Architecture Drafts To Assemble Doors And Windows

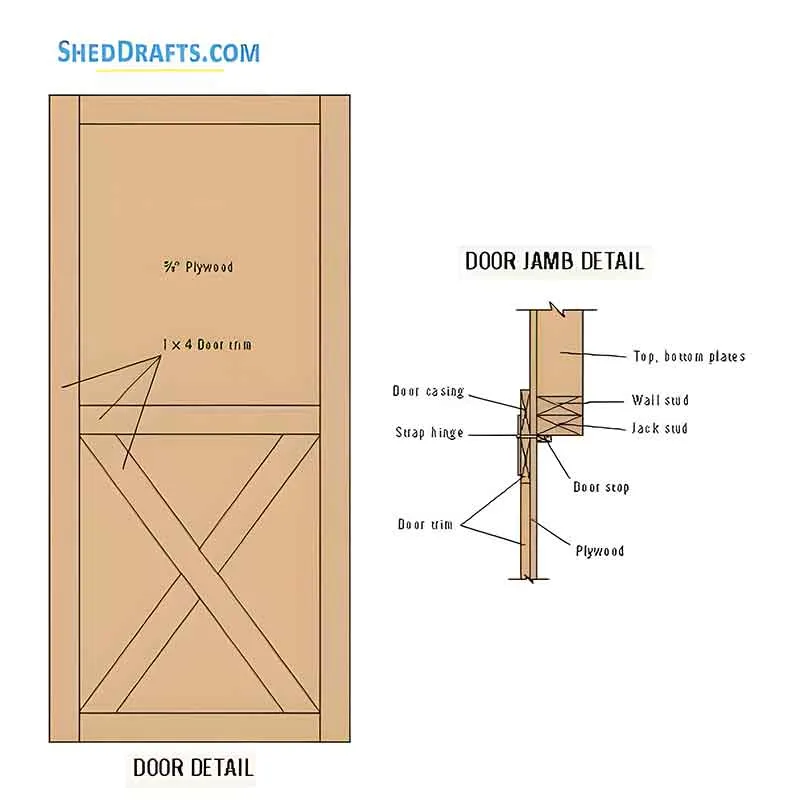

    8x12 Saltbox Storage Shed Plans Blueprints 13 Door Jamb Detail

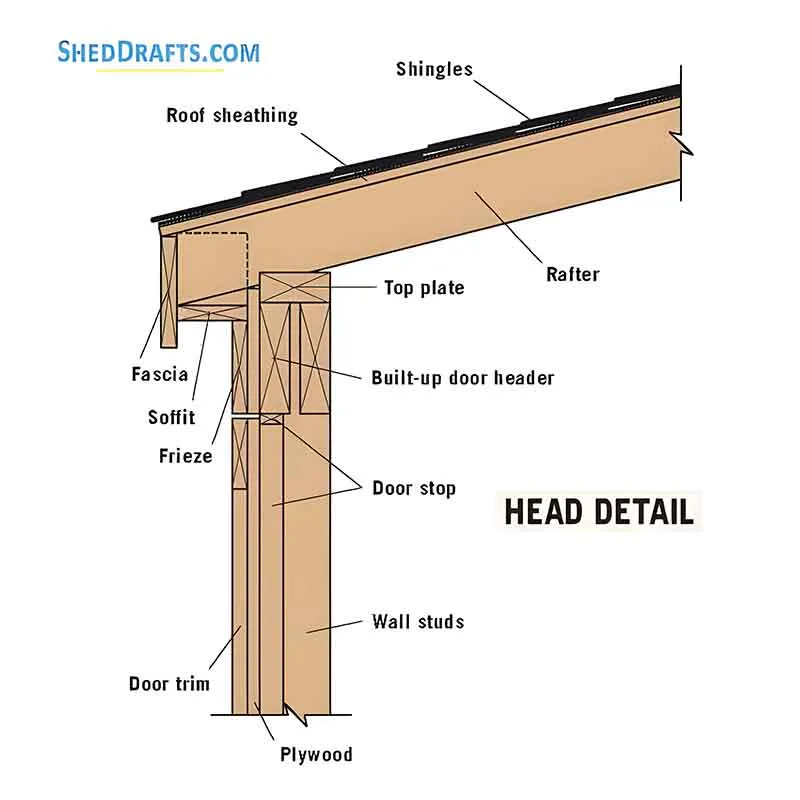

    8x12 Saltbox Storage Shed Plans Blueprints 11 Head Detail

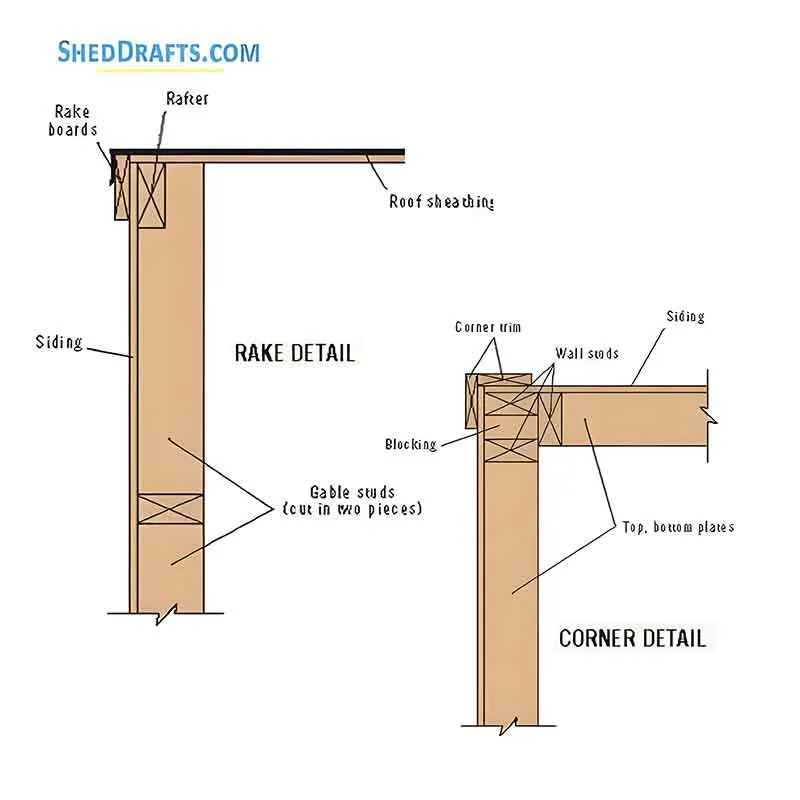

      8x12 Saltbox Storage Shed Plans Blueprints 12 Rake Corner Detail

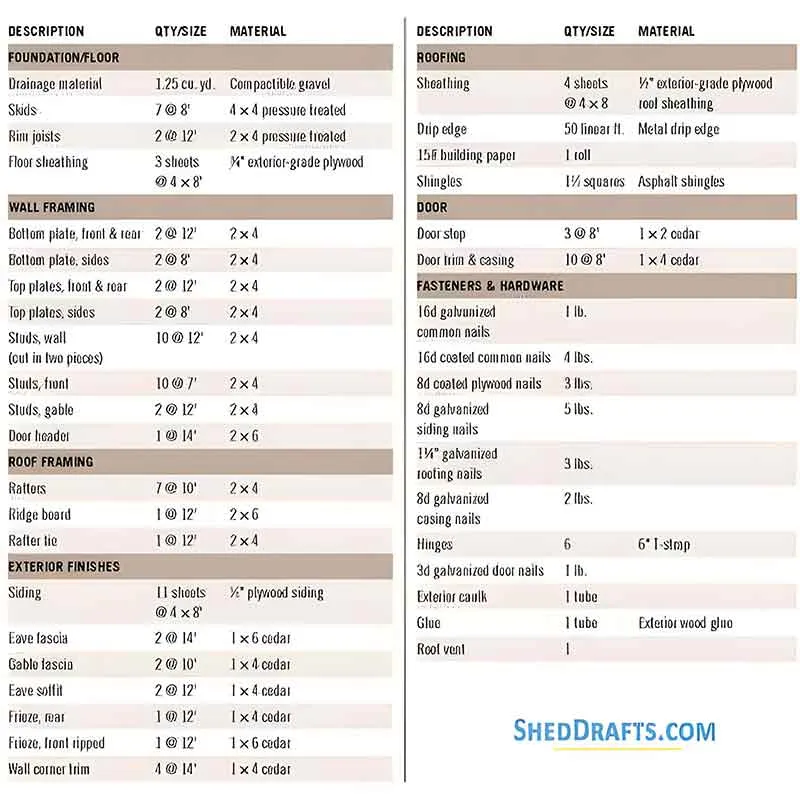

      8x12 Saltbox Storage Shed Plans Blueprints 14 Material List
